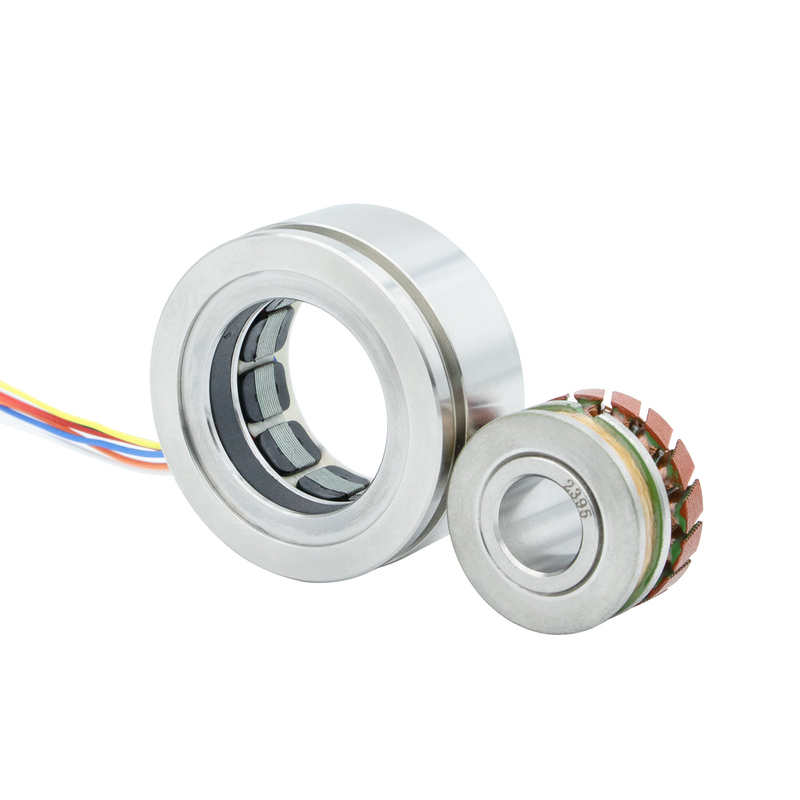

36XFW Series
36XFW Series
36XFW Series
- Detail
- Parameters
Model
36XFW7101/36XFDW7102/36XFDW7103/36XFDW7104/36XFDW7105
Pole Numbers
1/2/3/4/5
Outer Diameter
37.5mm
Inner Diameter
9.52mm
Category
Sub-assembled type
Accuracy
See the main drawing
Excitation Input
AC 7Vrms 10kHz
Transformation Ratio
0.5±5%
Operating Temperature
-55℃-+155℃
Phase Displacement
<5°Nom
Input Impedance（ZRO）
（135±15%）Ω
Output Impedance（ZSO)
(340±15%)Ω
Output Impedance（ZSS)
(290±15%)Ω
Maximum Operating Speed
12000rpm
Insulation Resistance
DC 500V 1min
